Processing platforms for multi-camera systems, high-speed inspection, image saving, data handling, and software control — the box that turns captured images into decisions and data, line after line.
The camera, lens, and lighting capture an image — the vision controller or industrial PC is what actually does something with it. It runs the inspection software, synchronizes multiple cameras against a single trigger, and turns a pass/fail result into a signal the rest of the line can act on.
In continuous production, this box also has to survive the environment it’s running in: heat, vibration, dust, and years of uninterrupted uptime, which is why we specify industrial-grade platforms rather than commercial desktop hardware.
We specify platforms built for long-term, unattended operation on a production line, not repurposed office hardware.
We supply HWAINTEK vision controllers for multi-camera inspection systems, sized to the camera count and processing load of your line.

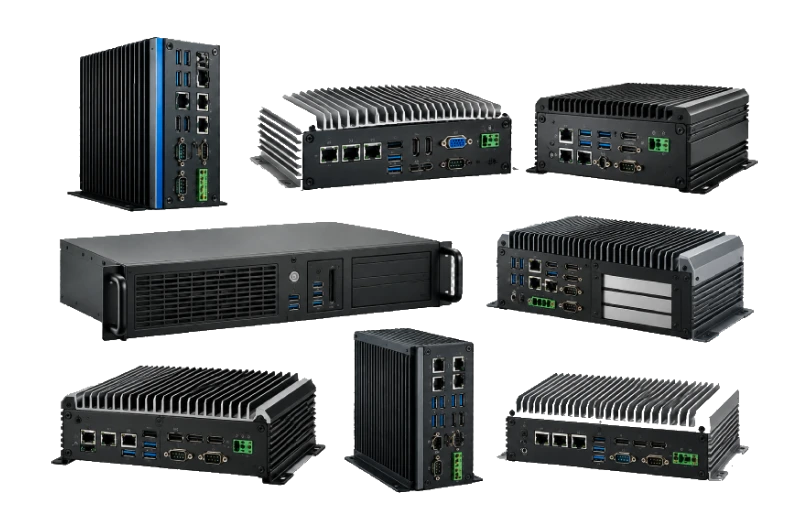

We supply Advantech’s industrial PC and embedded computing platforms, built for fanless, wide-temperature, long-term factory floor operation.
The right platform is sized to how many cameras it runs, how fast it needs to decide, and what has to be logged afterward.
Trigger and capture from several cameras in a single, time-aligned inspection cycle.
Run inspection algorithms within the cycle time your line actually demands.
Log full-resolution images for failed parts, audits, or offline reprocessing.
Record measurements and results against part IDs for reporting and traceability.
Run the vision software, inspection tools, and custom logic your application needs.
Communicate results and status to the PLC, HMI, or plant network in real time.
Industrial-grade Intel Core or Xeon platforms, sized to camera count and processing load.
GigE, USB3, CoaXPress, and Camera Link, via onboard ports or frame grabber cards.
SSD or RAID storage for high-speed image logging and long-term retention.
Windows or Linux, configured for long-term industrial support and stability.
Digital I/O plus EtherCAT, Profinet, or Modbus for PLC and line integration.
Rack-mount, fanless, or DIN-rail enclosures depending on panel space.
The difference shows up in year three, not on day one.
Fans, subject to dust ingress and failure
Often fanless, sealed against dust and debris
Narrow, office-grade operating range
Wide range for hot or cold production floors
Not rated for continuous mechanical vibration
Rated for sustained factory-floor vibration
Short commercial lifecycle, frequent revisions
Long-term availability for line replacements
The factors our application engineers work through before recommending a specific controller or IPC.
Sized to the number of cameras and the complexity of the inspection algorithms.
Matched to your camera interfaces — GigE, USB3, CoaXPress, or Camera Link.
Enough capacity and speed to log images without slowing the inspection cycle.
The right protocol and I/O to talk to your existing PLC and plant network.
Rack-mount, fanless, or DIN-rail, based on panel space and cable routing.
Temperature range, vibration resistance, and dust protection for the floor.
Tell us how many cameras, what needs to be logged, and how you need to talk to your PLC. Our application engineers will size the right controller or industrial PC.
